Product Details:
|
Material: | Polyester Based | Hardness: | 88±2D |
---|---|---|---|
Process Mold: | Injection Molding | Application: | Caster, Wheel. Electronic Accessories |
Highlight: | Polyester based Fiber TPU,high Hardness Fiber TPU,Injection Molding Fiber TPU |

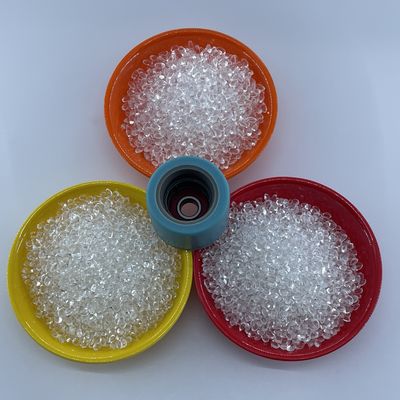

Fiber TPU for castor quay wheel Lagging raw material, Good hardness, hydrolytic resistance, super abrasion material
Production Process:
Mold: Injection molding
Drying requirements: Please dry at 90-100℃ for 3-4 hours;
Injection temperature: 190-195 degrees for the first section, 195-200 degrees for the second section, and 195-210 degrees for the third section
Features:
Technical Datasheet:
Content | Hardness | Density | Melt Index | Abrasion | Impact strength | Tensile Strength | Breaking Elongation | Flexural modulus |
Test Method | ISO R 868 | ASTM D-792 | ISO 1133 | DIN 53516 | GB/T1843 | ASTM D-412 | ASTM D-412 | ASTM D-412 |
Test units | ShoreA/D | mm | g/10min | mm3 | KJ/M2 | kg/cm3 | % | mpa |
GF-71D10 | 75±1D | 1.387 | 11.5/230℃/2.16KG | 33.5 | 13.5 | 625 | 89.5 | 1275 |
GF-71D15 | 73±2D | 1.387 | 11.5/230℃/2.16KG | 34.5 | 14.5 | 655 | 75.8 | 1895.9 |
GF-71D20 | 76±1D | 1.387 | 11.5/230℃/2.16KG | 34.5 | 14.5 | 655 | 75.8 | 1895.9 |
GF-64D30 | 72±1D | 1.326 | 11.5/230℃/2.16KG | 34.5 | 16.8 | 458 | 65.1 | 1006 |
GF-71D40 | 85±1D | 1.525 | 5.3/230℃/2.16KG | 28.7 | 72.3 | 730 | 18.5 | 2761.1 |
GF-71D50 | 88±2D | 1.685 | 4.8/230℃/2.16KG | 26.5 | 21.2 | 858.5 | 21.5 | 2968.2 |
Application:

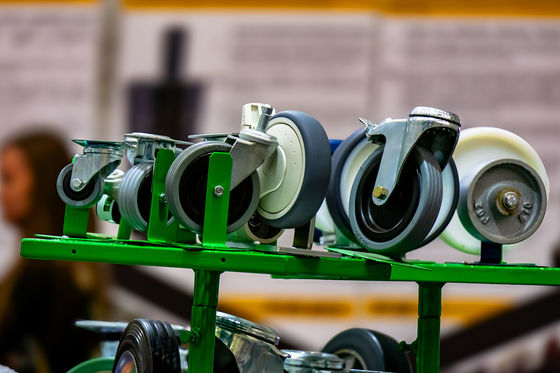

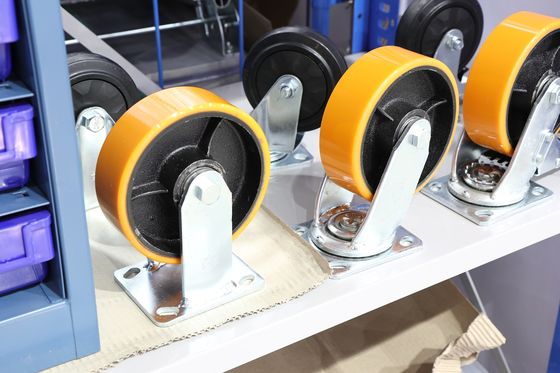

Caster, wheel. electronic accessories,
Dingzhi Polymer provide wide range of raw material, can be widely used in shoe materials, bag materials, sports equipment, medical equipment, the automobile industry, packaging products, wire and cable coating materials, hoses, films, coatings, inks, adhesives, melt spun spandex fibers, artificial leather, bonded clothing, gloves, air blowing products, agricultural greenhouse, air transportation, and national defense industry.
Please contact us for details.
