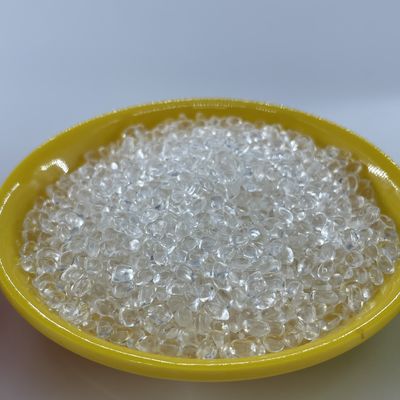

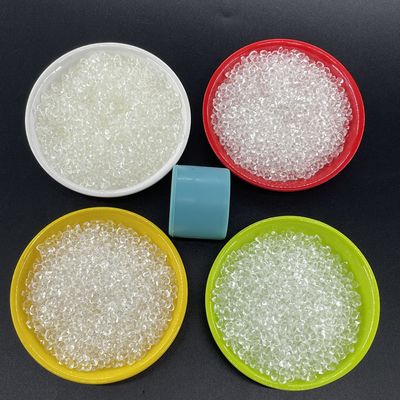

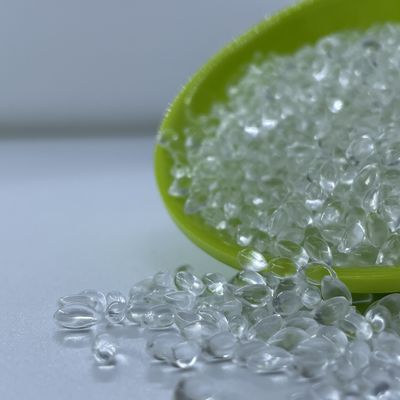

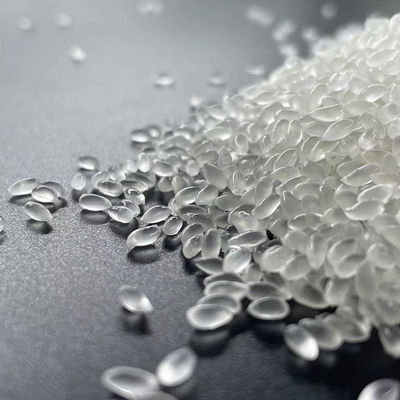

Plastic Molding Raw Material TPU Granules 73D Flame Retardant Grade V0 Suitable For Wires And Cables
Specification
| Item |
Value |
| Place of Origin |
Guangdong,China |
| Brand Name |
DingZhi |
| Model Number |
DV-73D |
| Product name |
Polyether-Based TPU Granule |
| Color |
Transparent/Customized |
| Application |
Livestock Ear Tags |
| Hardness |
73D |
| Type |
Virgin & Off grade |
| Grade |
Injection |
| Advantage |
Oil-resistant water-resistant mold-resistant impact-resistant |
| Feature |
Environmentally Friendly |
| Advantage |
1. Competitive price, high quality, on-time delivery, free sample
2. Environment friendly
3. High Heat Resistance, High impact resistance
4. Without any impurity
5. Can be reinforced with the glass fiber/toughness/flame retardant/UV stabilizer
|
| Characteristic |
- Wear Resistance: TPU plastic raw material boasts exceptional wear resistance, which is over five times that of natural rubber.
- Tensile Property: With a tensile strength of up to 70MPa and an elongation at break reaching 1000%.
- Tearing Performance: TPU features high tear resistance, significantly surpassing that of many common rubbers and plastics.
- Folding Performance: TPU products maintain outstanding bending resistance across various environments, making them one of the top choices among polymer materials.
- Hydrolysis Resistance: TPU shows excellent water resistance under turbid conditions, with no significant hydrolysis occurring within 1 - 2 years, especially for the polyether series.
- High - Temperature and Oxidation Resistance: TPU has good antioxidant properties and can withstand temperatures up to 120℃.
- Oil and Chemical Resistance: TPU has minimal affinity for non - polar mineral oils and remains virtually unaffected by fuel oils (like kerosene and gasoline) and mechanical oils (such as hydraulic, gear, and lubricating oils).
- Low - Temperature Performance: TPU can resist low temperatures down to -50℃, replacing general PVC, which becomes brittle at low temperatures and is unsuitable for various applications. It is especially suitable for products used in cold regions.
- Air - tightness: TPU can be easily welded by high - frequency waves or hot pressing, making it widely used in inflatable products.
- Biomedical Performance: TPU offers excellent biocompatibility. It is non - toxic, causes no allergic reactions, local irritation, or heat, thus being widely applied in medical and health - related products, as well as sports and protective gear.
|
| Application |
Shoe purpose: shoe soles, shoe decoration, snow boot…etc.
Wheel purpose: skate wheel, castor wheel, load wheel…etc.
Industrial parts purpose: O-ring, oil seal, gasket…etc.
Mobile purpose: mobile protection case, mobile phone accessories…etc. |
| Package |
25KG per carton |
| Payment terms |
TT, Paypal. |
| Delivery time |
Within 7-10 days |
| MOQ |
25 Kg |
| Capacity per day |
25 tons |
PRODUCT PARAMETERS
Thanks to its exceptional properties, TPU material is a top choice for film products. Depending on the specific application requirements of TPU films, we suggest selecting different types of TPU materials, such as Polyester TPU and Polyether TPU, to achieve the best performance.
Production Process:
1.Drying requirements: Please dry at 80-90 ℃ for 3-4 hours;
2.Injection temperature: 165-180 degrees for the first section, 175-185 degrees for the second section, and 180-190 degrees for the third section
3.Pressure: 75-110 Pa
THERMOPLASTIC POLYURETHANE TPU RAW MATERIAL
1.Composition and Classification: TPU, or thermoplastic polyurethane, comes in two main types: polyester and polyether.
2.Key Physical Properties:
2.1 It offers a wide hardness range from 60HA to 85HD.
2.2 Features include high wear resistance, excellent oil resistance, transparency, and superior elasticity.
3.Diverse Applications: TPU is extensively used in various fields such as daily necessities, sporting goods, toys, and decorative materials.
4.Environmental Advantage: Halogen-free flame retardant TPU can substitute soft PVC, meeting the growing environmental protection demands of numerous industries.
5.Quality Consideration: With numerous TPU brands available and varying quality levels, thorough evaluation and demonstration are essential when selecting TPU to ensure optimal cost - effectiveness.
6.Outstanding Characteristics: TPU stands out with its wide hardness range, high strength, friction resistance, toughness, elasticity, cold resistance, oil resistance, water resistance, aging resistance, and climate resistance, surpassing many other plastics.
7.Additional Functions: It also provides excellent properties like high water resistance, moisture permeability, wind resistance, cold resistance, antibacterial, mildew resistance, heat preservation, UV resistance, and energy release.
8.Broad Application Scope: TPU's versatility leads to its use in shoe materials, bag materials, sports equipment, medical devices, the automotive industry, packaging products, wire and cable coatings, hoses, films, coatings, inks, adhesives, melt - spun spandex fibers, artificial leather, bonded clothing, gloves, inflatable products, agricultural greenhouses, air transportation, and the defense industry.
THE MAIN CHARACTERISTICS OF TPU
PRODUCT APPLICATION:
- Automotive and Industrial: TPU is utilized for automotive instrument panels, caster wheels, and power tools, offering durability and functionality.
- Consumer Goods: It plays a key role in sporting goods, medical devices, drive belts, and footwear. Additionally, it’s the material of choice for inflatable rafts and various extruded film, sheet, and profile products.
- Electronics: Popular in the electronics industry, TPU is used for mobile phone outer cases and laptop keyboard protectors, providing protection and a good tactile feel.
- Specialized Applications: TPU excels in performance films, wire and cable jacketing, hoses, and tubes. It’s also widely applied in adhesives, textile coatings, and serves as an impact modifier for other polymers.
- Innovative Use: TPU pellets are at the core of the “Boost” cushioning technology. By binding thousands of these pellets, manufacturers craft highly comfortable shoe soles, showcasing TPU’s innovative potential in footwear.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
