Product Details:
|
| Model: | DZ-65A | Name: | Thermoplastic Polyurethane Foam |
|---|---|---|---|
| Color: | Transparent Or Customized | Application: | Shoe Materials, Soles, Straps, Clothing Accessories, Etc |
| Hardness: | 65-68A | Grade: | Injection |
| Advantage: | Oil-resistant Water-resistant Mold-resistant Impact-resistant | Feature: | Environmentally Friendly |
| Tensile Strength(Mpa): | 351.8 | Tear Strength(KN/m): | 95.2 |
| Highlight: | 65 Thermoplastic Polyurethane Foam,Thermoplastic Polyurethane Foam Resin,polyurethane pellet Resin |
||
TPU Raw Material with Glass Fiber/Toughness/Flame Retardant/UV Stabilizer
Specification
| Item | Value |
| Place of Origin | Guangdong,China |
| Brand Name | Dingzhi |
| Model Number | DZ-65A |
| Product name | Polyether-Based TPU Granule |
| Color | Transparent/Customized |
| Application | Shoe materials, soles, straps, clothing accessories, etc |
| Hardness | 65-68A |
| Type | Virgin & Off grade |
| Grade | Injection |
| Advantage | Oil-resistant water-resistant mold-resistant impact-resistant |
| Feature | Environmentally Friendly |
| Advantage |
1. Competitive price, high quality, on-time delivery, free sample 2. Environment friendly 3. High Heat Resistance, High impact resistance 4. Without any impurity 5. Can be reinforced with the glass fiber/toughness/flame retardant/UV stabilizer |
| Characteristic |
1. wear resistance. TPU plastic raw material has excellent wear resistance, more than five times the wear resistance of natural rubber. 6. High-temperature resistance and oxidation resistance. TPU has good antioxidant capacity; The temperature resistance can reach 120℃. |

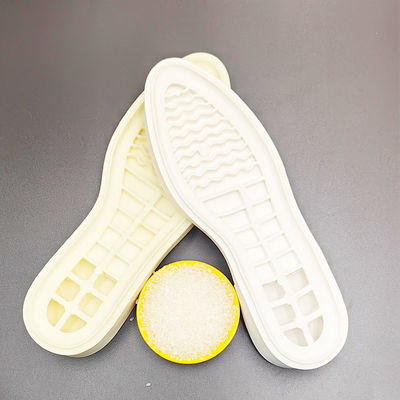

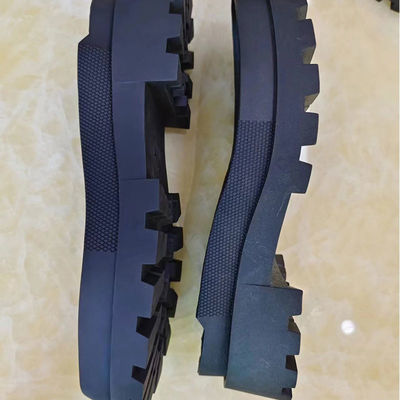

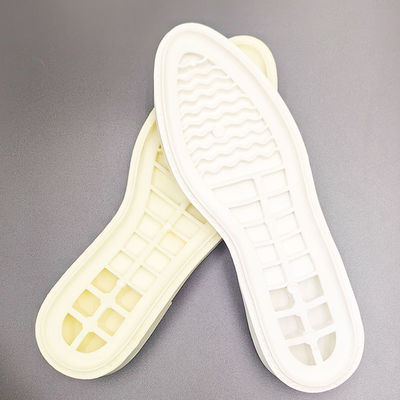

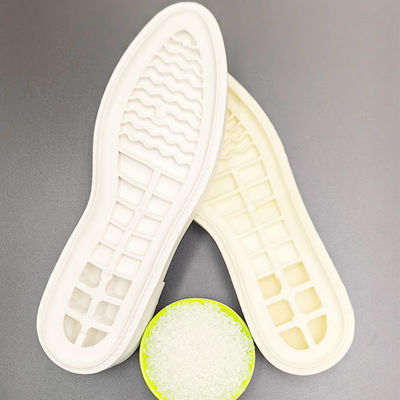

| Application | Shoe purpose: shoe soles, shoe decoration, snow boot…etc. Wheel purpose: skate wheel, castor wheel, load wheel…etc. Industrial parts purpose: O-ring, oil seal, gasket…etc. Mobile purpose: mobile protection case, mobile phone accessories…etc. |
| Package | 25KG per carton |
| Payment terms | TT, LC, Paypal. |
| Delivery time | Within 7-10 days |
| MOQ | 1 Kg and Free Sample |
| Capacity per day | 25 tons |
Data Sheet:
| Performance items | Test Method | Test Unite | Test Results |
| Hardness | ISO R 868 | Shore | 65-68A |
| Proportion | ASTM D-792 | g/cm³ | 1.178 |
| Melting index value | ISO 1133 | g/10min | 15.2/2.16KG |
| DIN friction loss | DIN-53516 | mm³ | 98.3 |
| Tear strength | ASTM D-624 | kN/m | 95.2 |
| Tensile strength | ASTM D-412 | ㎏/c㎡ | 351.8 |
| Total elongation at break | ASTM D-412 | % | 567.5 |
| 100% modulus | ASTM D-412 | ㎏/c㎡ | 55.1 |
| Anti UV/anti yellowing | Sunlight 300W/50 degrees/24hours | ||
| Transparency | Visual inspection of step test pieces | 2.0-3.0MM | |
THE MAIN CHARACTERISTICS OF TPU
![]()
![]()
